Outstanding chemical resistance at elevated temperatures

  • Virtually inert to most organics, acids and basesThreaded flange Revised
  • Usable up to 260°C / 500°F but weakens significantly
  • Excellent electrical insulator
  • High purity for sensitive pharmaceutical and food type applications
  • PTFE material datasheet
  • Threaded flange features and benefits

PTFE threaded flanges are made from the fluoropolymer polytetrafluoroethylene and are known for being exceptionally corrosion resistant and inert at elevated temperatures. PTFE threaded flanges are inert to most chemical environments including organics, acids, bases, mixed chemicals and hyrdofluoric acid. Additionally PTFE threaded flanges are bio-inert and will not leach into or contaminate sensitive pharmaceuticals or food based products.

Compared to other high performance polymer threaded flanges like PEEK or PVDF, PTFE threaded flanges offer the best all-around corrosion resistance especially at elevated temperatures. However the trade-off for its extraordinary corrosion resistance is the lower tensile strength compared to PVDF or PEEK threaded flanges.

ResouresFlange DimensionsFlange Bolting Chart

Flange Types Available: Blind FlangesThreaded Flanges


Mechanical Data

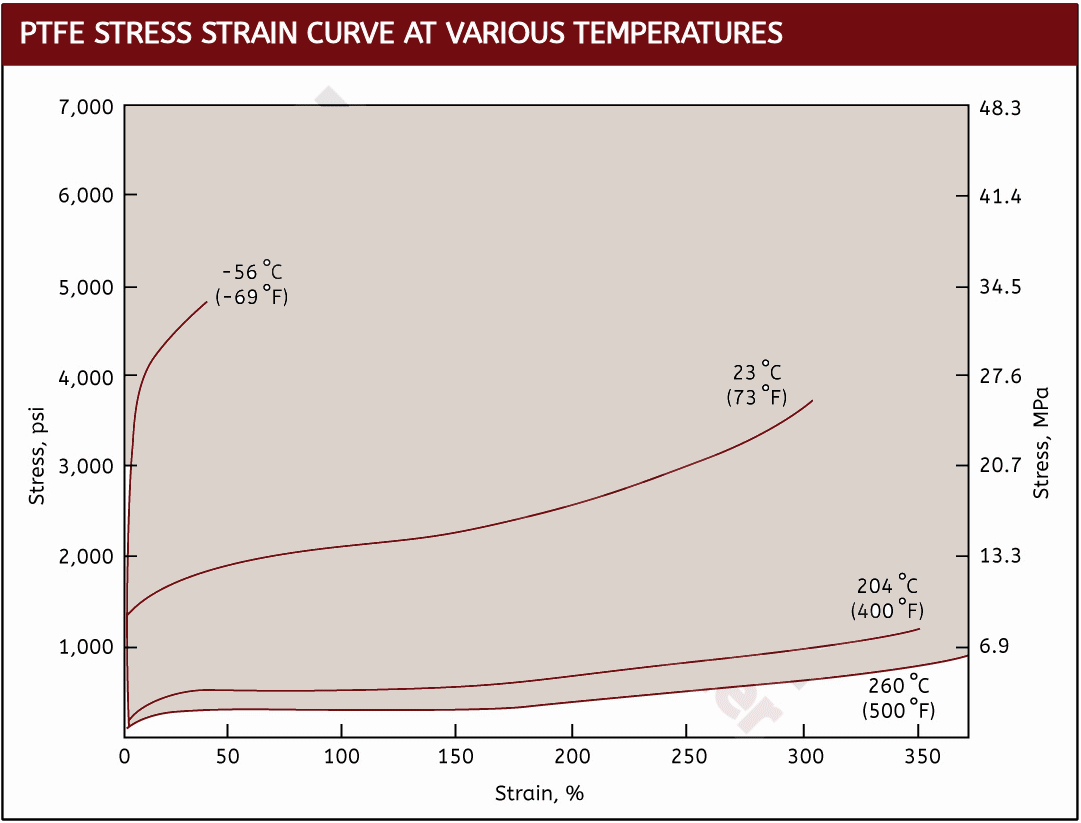

PTFE Stress vs Strain @ Various Temps.

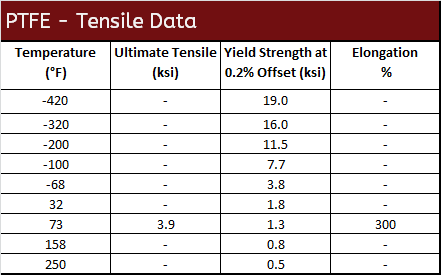

 PTFE Tensile Data

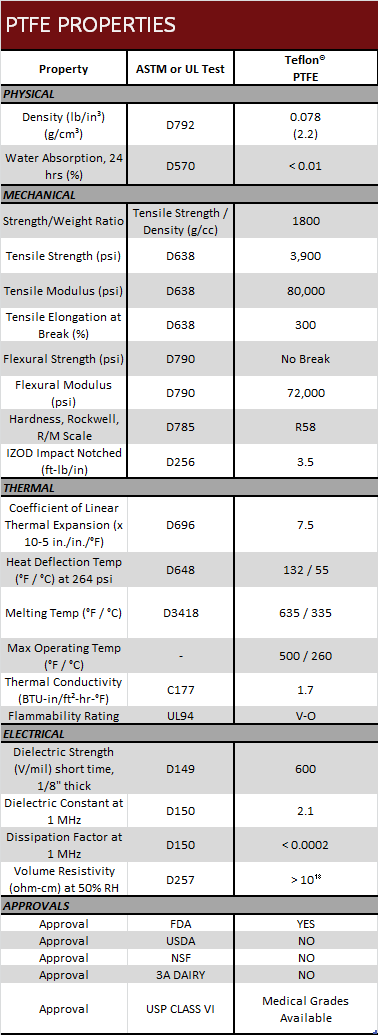

PTFE Properties

PTFE Properties




PTFE Threaded Flange Features & Benefits

combined threaded flange image

PTFE threaded flanges have a tapered female thread to join the male threads of a pipe in order to create a tight seal. This type of flange is most ideal when post weld heat treatment is not possible in hazardous, flammable or explosive applications where welding is too dangerous. PTFE threaded flanges are also convenient in pilot processes whose configuration is often changed.

Threaded Flange Advangtages

  • The main benefit is that that threaded seal eliminates the need for welding.
  • As they do not require welding they save time and money to install.
  • Allow for connections to be made in dangerous, explosive applications where welding is not possible.
  • Useful connection in materials that are difficult to create a successful and strong weld.
  • Ideal for connecting small diameter pipes.
  • Systems could be easily reconfigured.

Threaded Flange Disadvantages

  • They are not suitable where high temperatures, frequent cyclic conditions or bending stresses are likely in applications.
