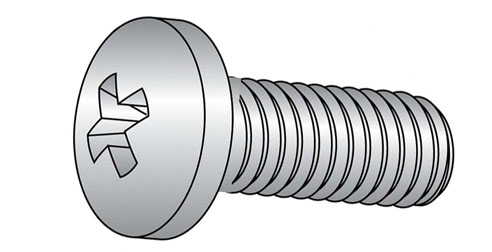

The optimal balance of chemical, mechanical and thermal propertiespan head PHILLIPS

PEEK pan head screws (chemically known as Polyetheretherketone) offer a unique combination of properties for some of the most extreme applications. PEEK is classified as semicrystalline thermoplastic and high purity polymer, offering excellent mechanical strength and chemical resistance at high temperatures. PEEK pan head screws offer a high strength alternative to PTFE fluoropolymers.

Key Benefits

  • Excellent resistance to thermal degradation (chemical decomposition caused by heat).
  • Chemically resistance to many oils, alcohols, solvents, and organics as well as harsh acids and bases in low concentrations and temperatures.
  • Hydrolysis resistance provides PEEK ability to retain all physical properties when continuously exposed to water or steam at high temperatures and pressures, as well as offer very low moisture absorption.
  • Outstanding creep resistance allows PEEK screws to sustain large stresses over long service life.
  • Ability to withstand frequent sterilization processes.
  • V-0 flammability rating with low smoke and toxic gas emission when exposed to flame.
  • Good wear and abrasion resistance.
  • Electrical properties are maintained over a wide frequency and temperature range.
  • Radiation resistance allows PEEK to be used in or be repeatedly sterilized by, high doses of ionizing radiation.

Options for High Strength
Depending on the application, PEEK pan head screws can be reinforced with glass or carbon fibers for improved strength and stiffness properties. Reinforced PEEK pan head screws offer greater mechanical robustness especially in applications beyond 350°F (175°C).

Applications

  • Viewed by the medical community as an advanced biomaterial, PEEK pan head screws are used in medical implants and are compatible with a high-resolution magnetic resonance imaging (MRI)
  • PEEK screws are one of the few plastics compatible with ultra-high vacuum (UHV) which is necessary for many analytic techniques and particle accelerators.
  • Chemical processing and pharmaceutical applications depend on PEEK for it’s chemical resistance, high purity and ability to withstand sterilization processes.
  • PEEK pan head screws are used in many electronics from cell phones to circuit boards for their lightweight strength and reduced noise, vibration and harshness (NVH).

Screws made from customer specified PEEK grades are available upon request. See our online store (right side) for common PEEK pan head screws or contact us for specialty or quantity requests.

Screw TypesFlat Head ScrewsHex Cap ScrewsPan Head ScrewsSet ScrewsSocket Head Cap Screws


PEEK Pan Head Screw Features and Benefits

Pan head screws are flat on top and rounded on the sides. PEEK pan head screws are ideal for:

  • Small diameter fasteners – especially when the fastener size needed is too small for a wrench.
  • When phillips or slotted drivers are desired. For many high strength specialty alloys, only slotted drives are available.
  • Low torque applications because the drivers don’t offer as much force as a wrench.
  • Large diameter head provides more clamping area.

How Are They Different from Button Head Screws?
PEEK pan head and button head screws have very similar profiles however, button head screws allow for a hex socket driver whereas pan head screws do not.




Common PEEK Screw Grades

PEEK 100% / Unfilled

PEEK, with no fillers is unreinforced and 100% polymer. Even without glass or carbon fiber reinforcement, this one of the strongest polymers we offer and well suited for a variety of applications including FDA food contact and other applications requireing high purity.

PEEK Glass Fiber Reinforced

PEEK 30% Glass Fiber Reinforced provide the same chemical resistance and natural PEEK but nearly doubles in tensile strength.

PEEK Carbon Fiber Reinforced

PEEK 20% Carbon Fiber Reinforced provides approximately 2.5 times the strength of pure PEEK.

PEEK Extreme

PEEK Extreme is our proprietary receipe for the highest strength PEEK utilizing carbon fiber reinforcement. This version of PEEK over 3 times stronger than standard unreinforced PEEK.




 Mechanical Properties of PEEK

PEEK Tensile Curves
Tensil Temperature Chart 11 2017

 Chemical Resistance of PEEK / Victrex(R) Screws

PEEK Chemical Resistance


PEEK Properties

PEEK Properties
