resistance. But when it comes to strength, temperature, purity and corrosion, each has its niche. The newsletter points out which is best to use in different conditions.

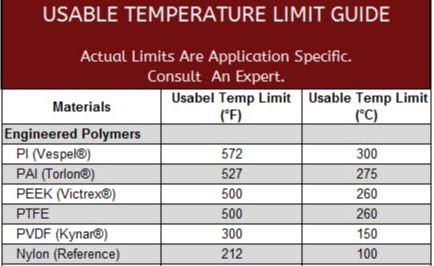

PEEK and PTFE screws offer excellent high temperature resistance to 500°F, far exceeding that of PVDF and nylon. For extreme temperatures up to 572°F requiring the best strength possible, Vespel is the ultimate choice.ULTRA PURITY
PVDF materials are approved by the FDA, USDA, NSF, 3A Dairy and USP Class VI. In addition, PVDF screws are resistant to ultraviolet and standard sterilization, making them ideal for pharmaceutical, food, and semiconductor applications.
CORROSION
PTFE fasteners score top marks for corrosion resistance: offering protection from most organic materials, acids and bases – even hydrochloric acid. Useable to 500°F, PTFE fasteners are ideal for high temperature corrosion resistance but are relatively weak. PVDF screws also offer a high level of chemical resistance and more strength than PTFE but but are generally reserved for lower temperature applications below 300°F. PEEK screws offer less corrosion resistance than PVDF but still can be considered to have very good corrosion resistance relative to other more common polymer fasteners.

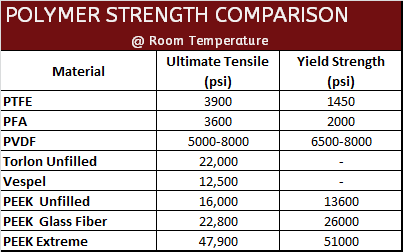

When it comes to strength, PEEK screws are ideal. PEEK offers higher strength than PTFE, PFA, PVDF and Vespel. While nature PEEK is very strong, fiber reinforced PEEK, like PEEK Extreme and glass filled PEEK fasteners are can be nearly as strong as some steel fasteners.
TOP PICKS
We you need fasteners with multiple capabilities, here are our top picks.
