Ultra-high density & high temperature / strength stability

  • Button HeadVery high density of 19.3 gm/cc
  • Radiopaque to x-rays and other radiation
  • High strength at extreme high temperatures (vacuum)
  • Excellent corrosion resistance
  • Mechanical properties of tungsten screws
  • Tungsten material datasheet
  • Tungsten button head cap screw features & benefits

Tungsten button head cap screws are known for their extreme high density; because of this unique attribute, they are often used for balancing rotating parts. Tungsten’s high mass also makes these screws radiopaque. This allows tungsten screws to block radiation and show up well on x-rays – even better than lead. Another unique attribute of tungsten is its extrmely high melting point of 3420°C. The high temperature stability of tungsten button head cap screws make them ideal for some of the hottest vacuum furnace environments. Beyond their high mass and temperature stability, tungsten fasteners are also very corrosion resistant.

Tungsten button head screws are usually made from tungsten alloys per ASTM B777, and range from 90% to 97% pure tungsten, alloyed with nickel and copper or nickel and iron. Fasteners can also be made from Commercially Pure (CP) Tungsten.

Applications

  • The aerospace industry depends on the tungsten button head cap screws for their combination of high density and mechanical strength which allows them to reduce the physical size of components, offering greater control of weight distribution for propellers, inertial systems and fluid control systems to name a few.
  • The heat treating / furnace industry uses tungsten button head cap screws in high temperature vacuum furnaces due to tungstens great high temperature strength & stability.
  • The oil & gas industry uses tungsten button head cap screws for radiation shielding properties to protect equipment used in oil and gas detection, as well as down hole logging for density and ability to withstand intense hydrostatic pressure
  • Tungsten button head cap screws also play a role in the medical community for their low magnetic properties as well as their radiopaque properties.

Resources: Tungsten Torque Specs

Tungsten Screw Types: Flat Head ScrewsHex Head Cap ScrewsPan Head ScrewsSet ScrewsSocket Head Cap Screws


Tungsten Button Head Cap Screw Features & Benefits

Tungsten button head cap screws combine the similar shape of a pan head with the driver of a socket head. The socket driver is ideal for low clearance applications that require a large area clamping face. Compared to a standard socket head cap screw, tungsten button heads have a lower and wider profile. This can be useful when the clamping material is too thin to counter-bore.

Advantages

  • Wide bearing surface for clamping
  • Low profile head

Tungsten Chemistry & Specifications

Tungsten Specifications: ASTM B777, Mil Spec T-21014D

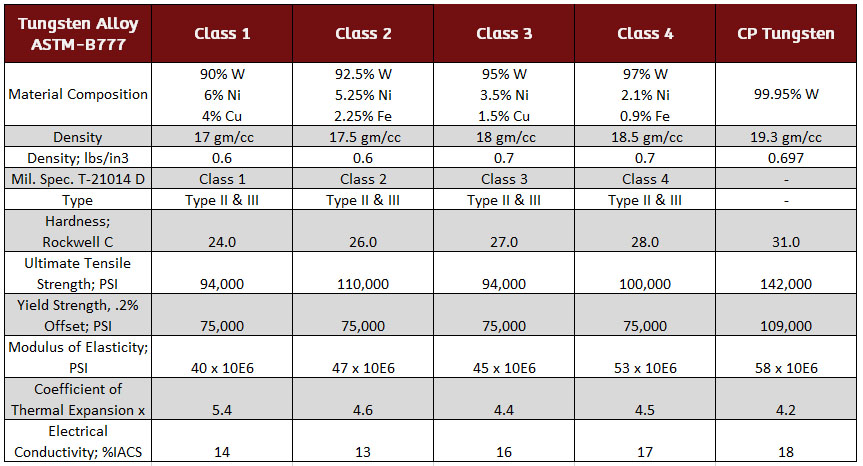

Tungsten alloy chart Revised 6 28 18
